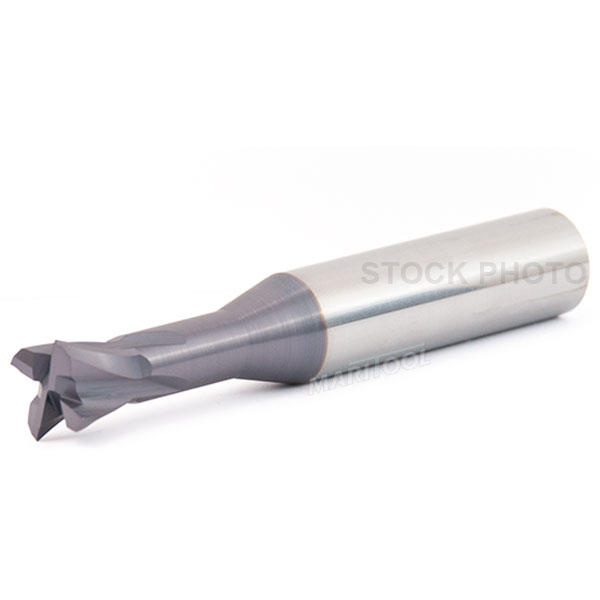

Solid Carbide Dovetail Cutter .125 dia X 30 degree included $35.60
Solid Carbide Dovetail Cutter .125 dia X 30 degree included
Click to enlarge

Solid Carbide Dovetail Cutter .125 dia X 30 degree included
Click to enlarge 		Solid Carbide Dovetail Cutter .125 dia X 30 degree included
Click to enlarge
Solid Carbide Dovetail Cutter .125 dia X 30 degree included
Click to enlarge
Item No. 2434-.125-30D-1
Price: $35.60
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 2434-.125-30D-1
PDF file
Product Info

View complete catalog page

  • Dovetail cutters are designed for cutting dovetails in a wide variety of materials. Also can be used for chamfering or milling angles on bottom surface of a part.

    • Angle tolerance is + - 1/2 degree
    • Cutting diameter is +0.0 -.002
    • Neck diameter +-.0015
Product Specifications
Coating:  AlCrN
Corner Radius:  none
Cutting Diameter:  .125
Flat:  none
Helix Angle:  15 degree
Included Angle:  30 degree (15 per side)
Material:  Solid Carbide
Neck Diameter:  .071
Number of Flutes:  3
Shank Size:  .125 dia
Total Length:  2.0
Total Reach (flute length + neck width):  .344
Width:  .10
