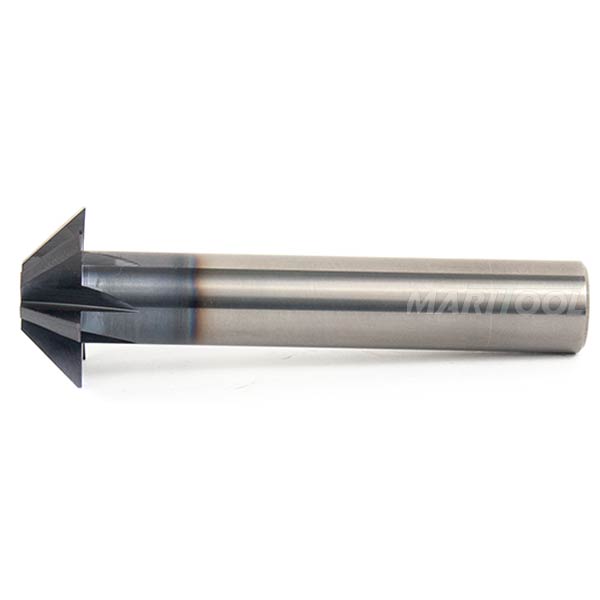

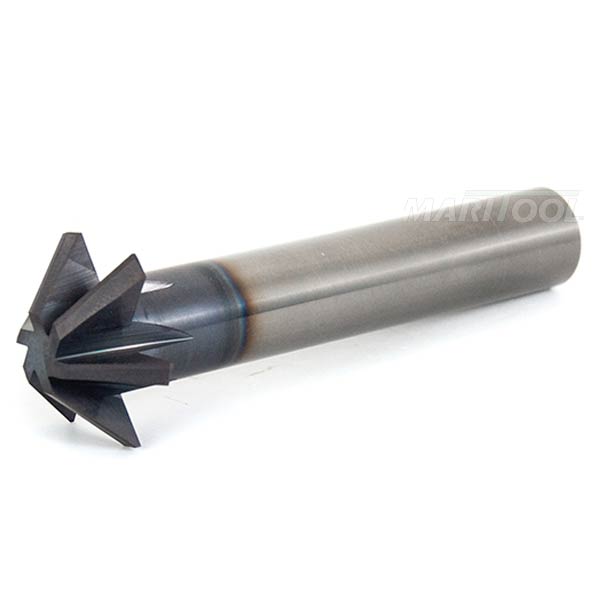

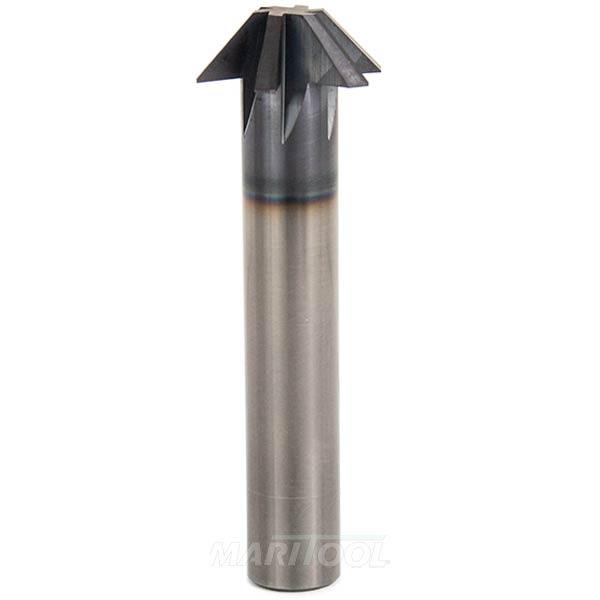

6 Flute Solid Carbide Chamfer Milling Cutter 1.0 dia X 45 degree Tialn $108.30
6 Flute Solid Carbide Chamfer Milling Cutter 1.0 dia X 45 degree Tialn
Click to enlarge

6 Flute Solid Carbide Chamfer Milling Cutter 1.0 dia X 45 degree Tialn
Click to enlarge 		6 Flute Solid Carbide Chamfer Milling Cutter 1.0 dia X 45 degree Tialn
Click to enlarge
Item No. 2511-1.0-45deg-SA
Price: $108.30
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 2511-1.0-45deg-SA
PDF file
Product Info

View complete catalog page

CLICK HERE to download our Speeds and Feeds Chart.
Chamfer Milling Cutters are great for milling angles and chamfers on a wide variety of materials. Chamfer Cutters are available in a wide variety of diameters in 45 degree and 60 degree angles. Cutting diameter is measured at the largest diameter on the cutter.
  • Shank tolerance is +.0000 -.0005
  • Cutting diameter tolerance is +-.001
  • Angle tolerance is + - 1/4 degree
  • Shanks do not have a Weldon flat
Product Specifications
Centercutting:  No
Coating:  tialn
Cutting Diameter:  1.000
Included Angle:  90 degree
Material:  Solid Carbide
Number of Teeth:  6
Shank Size:  .500 dia
Tip Diameter:  .375
Total Length:  3.0
Width:  .33
