1.00 Variable Flute X .968 Reduced Shank X 6.0 OAL $368.20

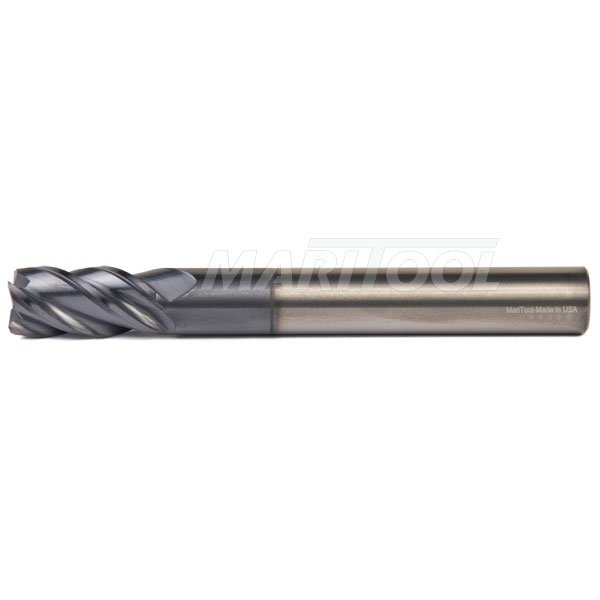

1.00 Variable Flute X .968 Reduced Shank X 6.0 OAL
Click to enlarge

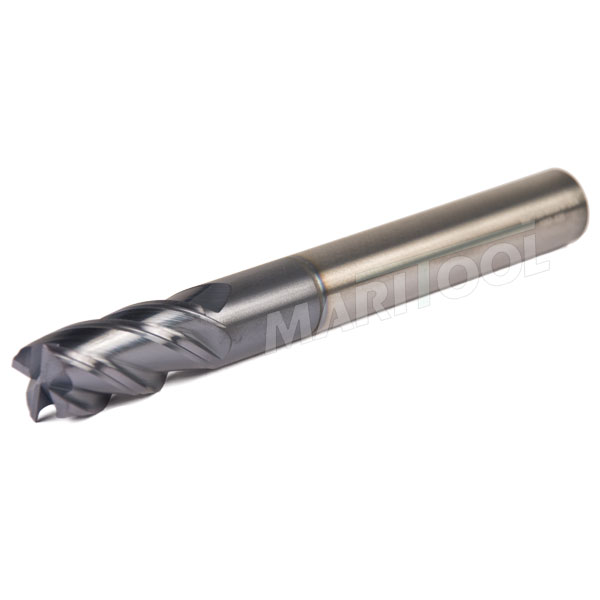

1.00 Variable Flute X .968 Reduced Shank X 6.0 OAL
Click to enlarge
Item No. 1062-1.00
Price: $368.20
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Variable Helix and Indexing allow high speed machining while greatly reducing harmonics and vibration.
  • Entire shank is reduced to .968 diameter up to the end of the flute.
  • This tool allows you to mill a pocket or wall up to 5.25 inches deep.
  • A collet chuck is recommended for these tools because of the stepped down shank
  • We recommend a TG100-31/32 collet or a ER40 collet X 31/32 diameter
  • For high speed machining ( HSM ) it is recommended you run this tool dry.
Product Specifications
Centercutting:  Yes
Coating:  AlTiN
Corner Radius:  .025
Cutting Diameter:  1.00
End Style:  Square
Flute Length:  1.5
Material:  Solid Micrograin Carbide
Number of Flutes:  4
Shank Size:  .968/.9675
Total Length:  6.0
