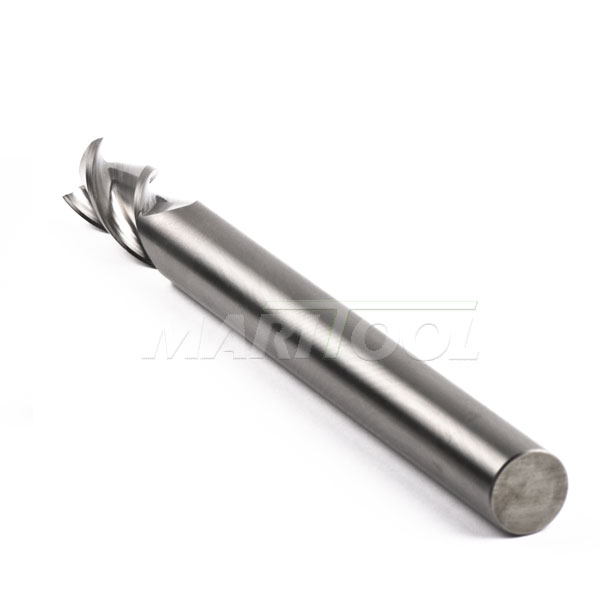

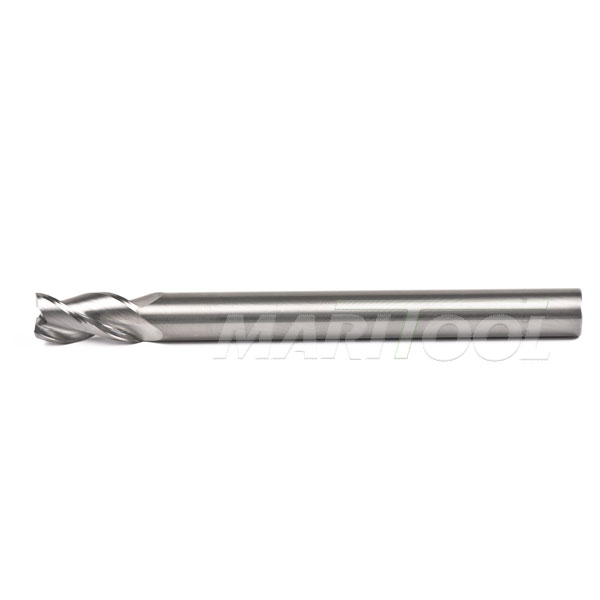

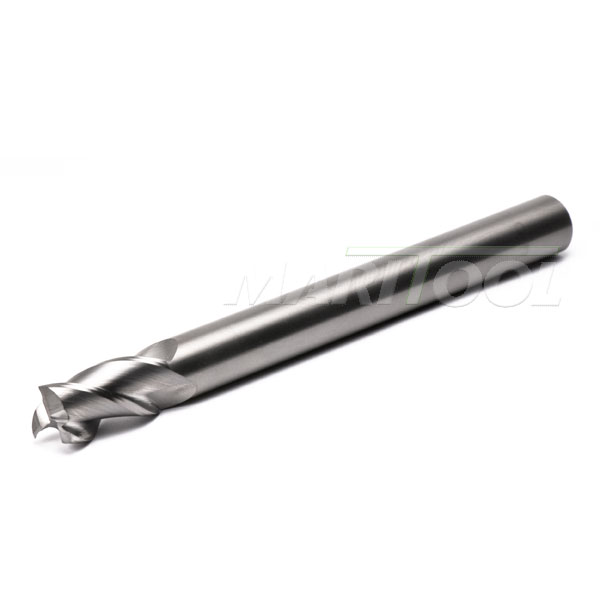

Reduced Shank 7/16 3 Flute Finisher 5.0 long X .394 Shank $103.05
Reduced Shank 7/16 3 Flute Finisher 5.0 long X .394 Shank
Click to enlarge

Reduced Shank 7/16 3 Flute Finisher 5.0 long X .394 Shank
Click to enlarge 		Reduced Shank 7/16 3 Flute Finisher 5.0 long X .394 Shank
Click to enlarge
Reduced Shank 7/16 3 Flute Finisher 5.0 long X .394 Shank
Click to enlarge
Item No. 1023-.4375
Price: $103.05
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

CLICK HERE to download our Speeds and Feeds Chart.

  • Solid carbide necked shank end mill
  • Entire shank is reduced to .393 diameter up to the end of the flute.
  • This tool allows you to mill a pocket or wall up to 4.4 inches deep.
  • Shank will not rub against the side wall, reducing taper and cutting forces
  • Side wall surface finish will be greatly improved
  • A collet chuck is recommended for these tools because of the stepped down non standard shank size
  • We recommend a TG100-13/32 collet or a ER16,ER20,ER25,ER32, and or ER40 collet X 10mm diameter
  • 3 flute high helix with extra deep flute and 3rd land edge prep
  • Reduced shank 3 flute end mill finisher has an extra long shank, perfect for deep pocketing and mold making
Product Specifications
Centercutting:  Yes
Coating:  Uncoated
Cutting Diameter:  .4375
End Style:  Square
Flute Length:  .875
Helix Angle:  38 Degree
Material:  Solid Micrograin Carbide
Number of Flutes:  3
Shank Size:  .3937/.3932
Total Length:  5.00
