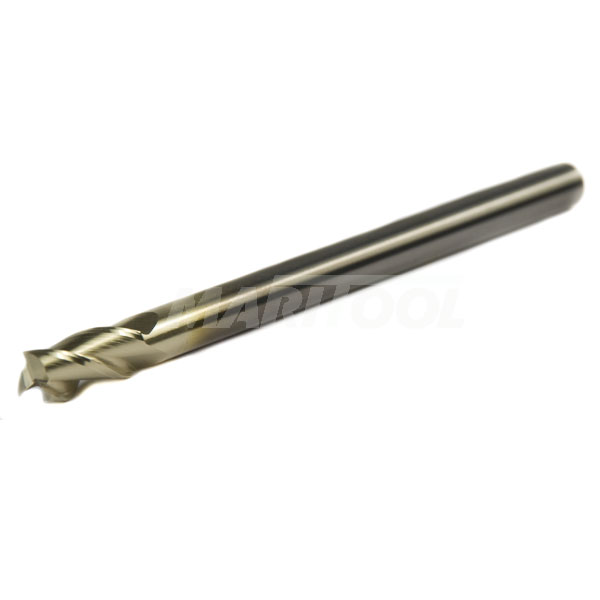

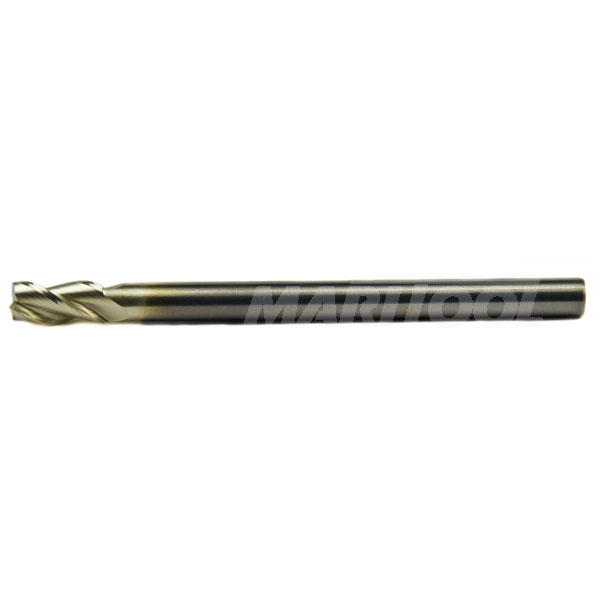

- Solid carbide necked shank end mill
- Entire shank is reduced to .236 diameter up to the end of the flute
- 45 Degree Helix
- This tool allows you to mill a pocket or wall up to 3.6 inches deep.
- Shank will not rub against the side wall, reducing taper and cutting forces
- Side wall surface finish will be greatly improved
- A collet chuck is recommended for these tools because of the stepped down non standard shank size
- We recommend a TG100-15/64 collet or a ER16,ER20,ER25,ER32, and or ER40 collet X 6mm diameter
- 3 flute high helix with extra deep flute and 3rd land edge prep
- Reduced shank 3 flute end mill finisher has an extra long shank, perfect for deep pocketing and mold making
