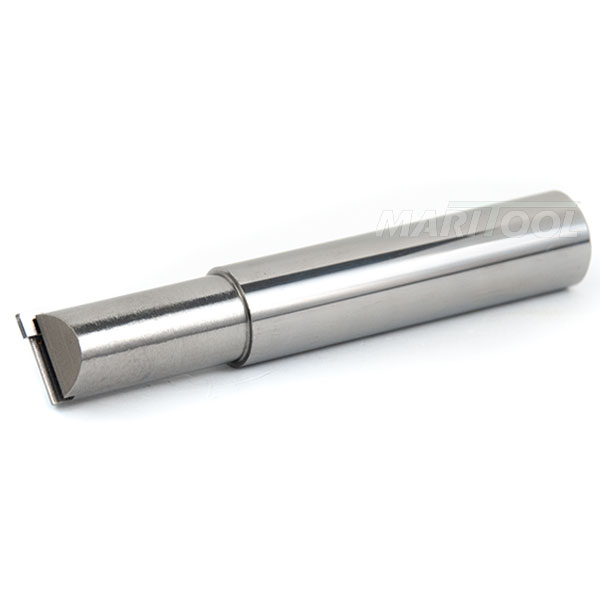

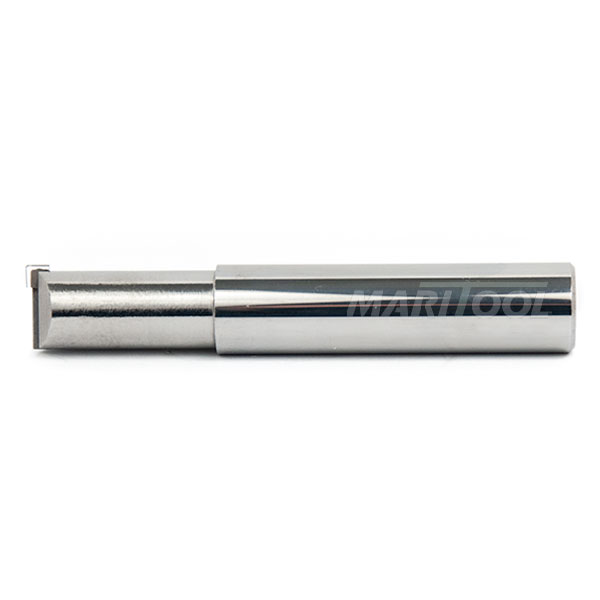

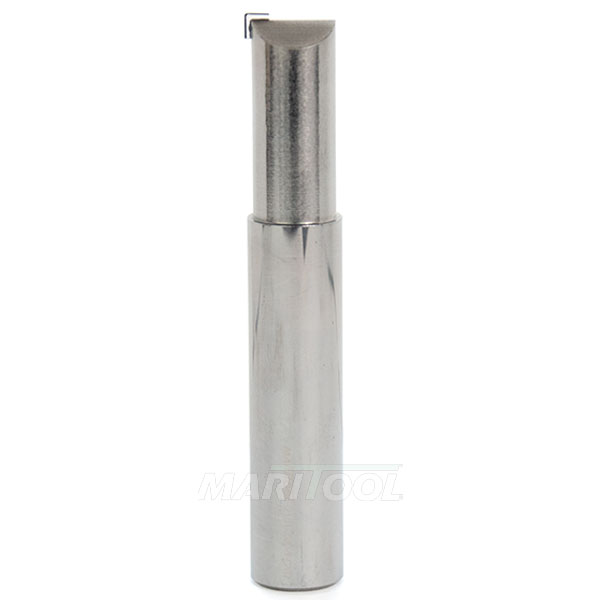

1/2 Single Flute CVD Tipped Square End Mill $116.80
1/2 Single Flute CVD Tipped Square End Mill
Click to enlarge


1/2 Single Flute CVD Tipped Square End Mill
Click to enlarge
1/2 Single Flute CVD Tipped Square End Mill
Click to enlarge
Item No. 2101-.500-1-CVD
Price: $116.80
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for 2101-.500-1-CVD
PDF file
Product Info

View complete catalog page

For light superfinishing cuts alum, copper alloys.



MCD is made under high temperature and high pressure, mainly light yellow in color.
CVD is made by chemical vapor deposition method, which is colorless, transparent.
CVD is purer and has better processing effect. CVD had high costs and limited applications.
Nowadays, the cost of CVD has decreased significantly, and most of our industry has switched to CVD (CVD can be made even larger), rarely using MCD anymore.

Product Specifications
Centercutting:  No
Corner Radius:  .015
Cutting Diameter:  .500
End Style:  Square With Corner Radius
Flute Length:  .110
L1:  1.0
Material:  Solid Carbide with CVD Tip
Number of Flutes:  1
Shank Size:  .500
Total Length:  3.0
