Back Chamfer Mill 90 deg X .375 Shank TiAlN Coated $90.15

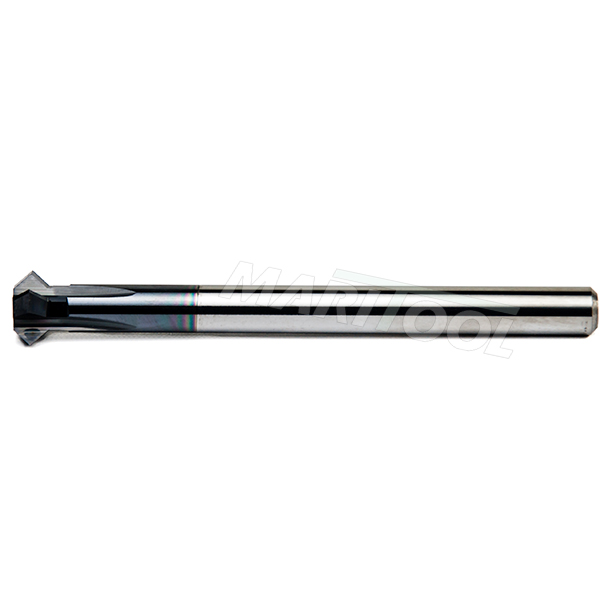

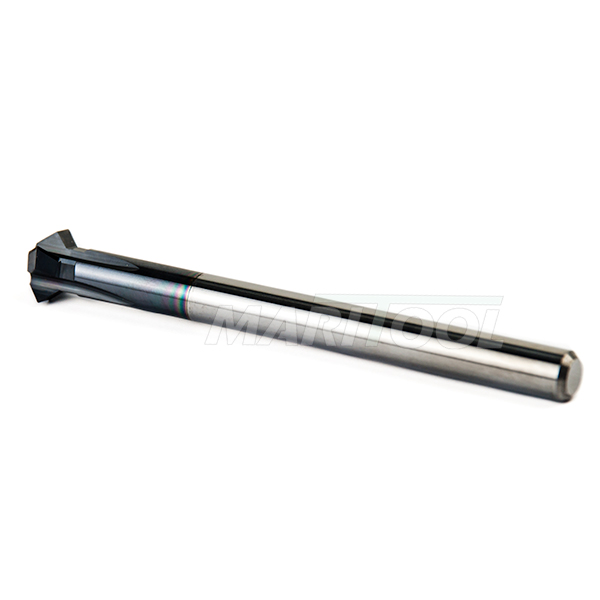

Back Chamfer Mill 90 deg X .375 Shank TiAlN Coated
Click to enlarge

Back Chamfer Mill 90 deg X .375 Shank TiAlN Coated
Click to enlarge 		Back Chamfer Mill 90 deg X .375 Shank TiAlN Coated
Click to enlarge
Item No. 3504-.554-.375-90deg
Price: $90.15
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Made from carbide shank with brazed carbide head.
  • Entire shank is reduced
  • Used for chamfering top and bottom sides of a part without the need for re-clamping
  • Head diameter is measured from the extreme tip
  • TiAlN coated for long life in alloy steels, stainless and other tough alloys
  • Tip comes to a sharp point. No flat.
Product Specifications
Centercutting:  No
Coating:  TiAlN
Flat on Shank:  No
Head Diameter:  .554
Included Angle:  90 deg
Material:  Solid Micrograin Carbide
Number of Flutes:  4
Shank Size:  .375
Total Length:  4.25
