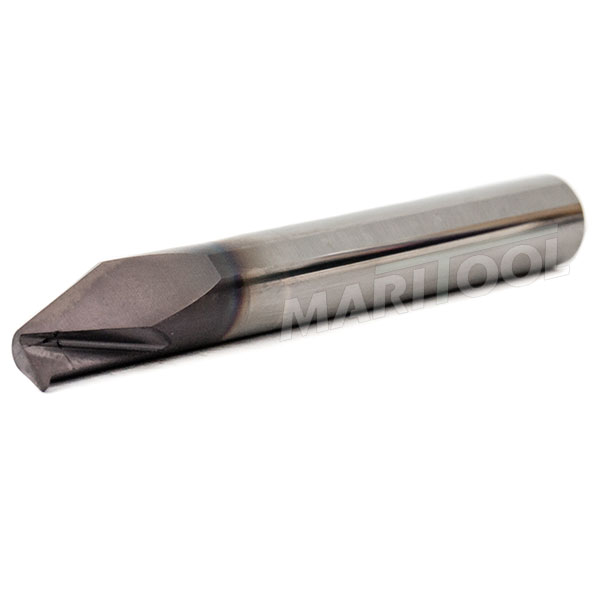

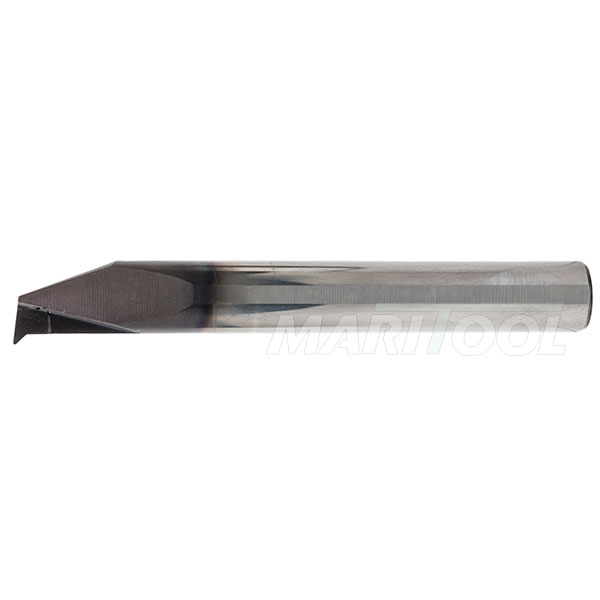

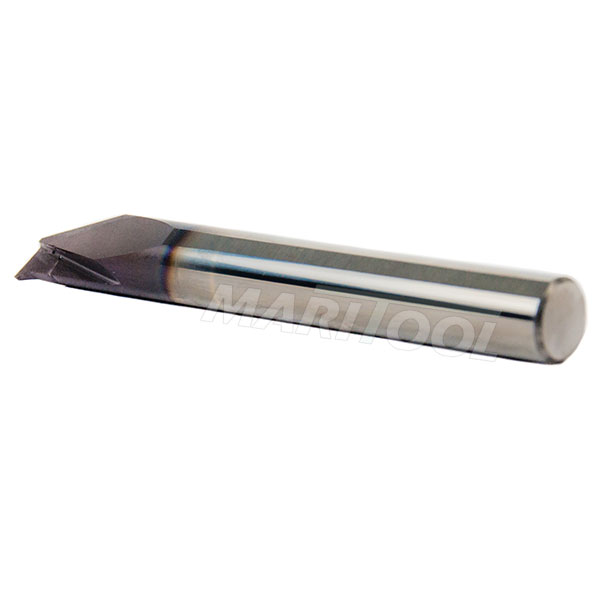

Multi Extension Profiling Bar .625 Shank X 4.0 Long X .015 Radius $92.55
Multi Extension Profiling Bar .625 Shank X 4.0 Long X .015 Radius
Click to enlarge

Multi Extension Profiling Bar .625 Shank X 4.0 Long X .015 Radius
Click to enlarge 		Multi Extension Profiling Bar .625 Shank X 4.0 Long X .015 Radius
Click to enlarge
Item No. MRP-625-01
Price: $92.55
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • These Carbide Profiling Bars have a flat on the top for easy alignment
  • Solid Carbide shank with brazed carbide head for excellent rigidity
  • Rear lead angle is 47deg. This tool can groove a 45 deg thread relief
  • This tool is great for hard to reach internal grooves and boring grind reliefs
  • Shank can be held at any length, allowing any extension needed
  • TiAlN coated for longer tool life
Product Specifications
Coating:  TiAlN
Corner Radius:  .015 Inches
Flat on Shank:  Yes
Lead Angle:  7 deg
Material:  Solid Micrograin Carbide
Minimum Bore Diameter:  .695 Inches
Projection (H):  .07 Inches
Shank Size:  .625 Inches
Total Length:  4.00 Inches
