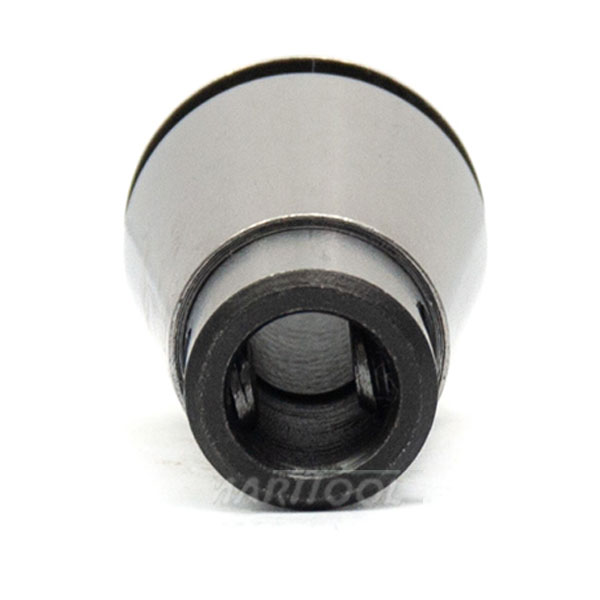

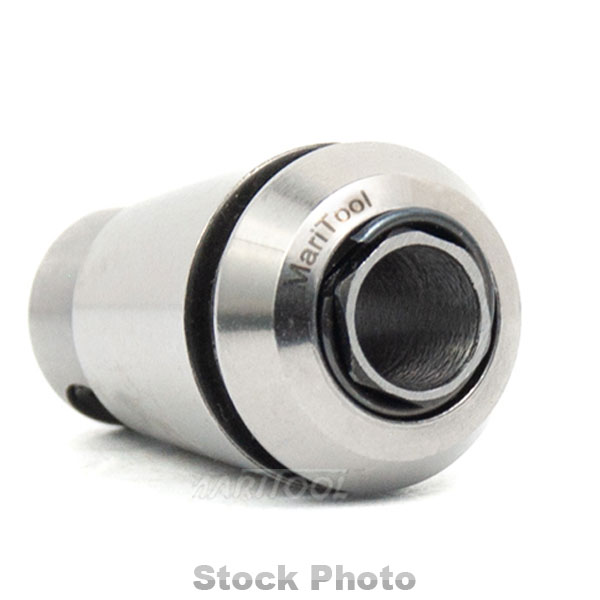

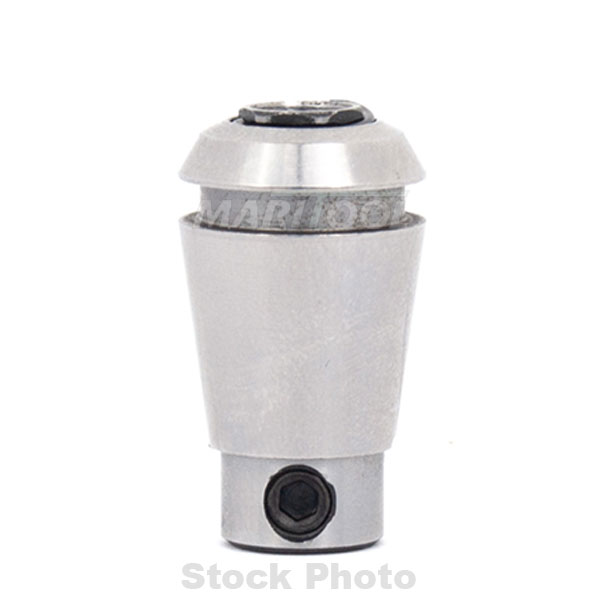

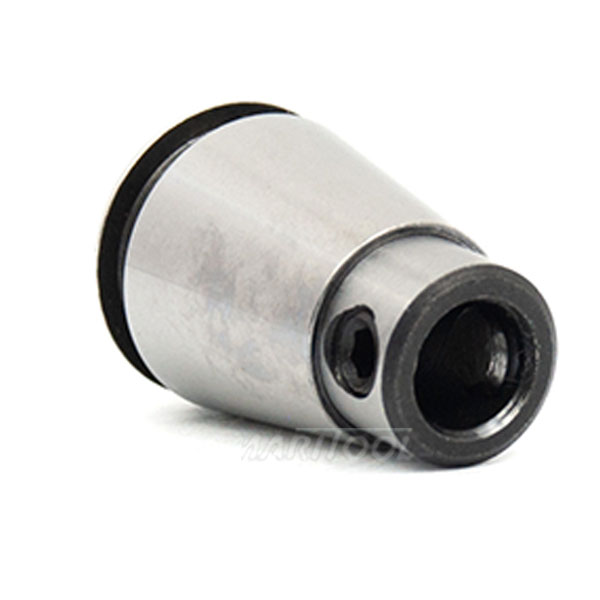

ER16 Floating Tap Collet .194 Shank $39.40
ER16 Floating Tap Collet .194 Shank
Click to enlarge

ER16 Floating Tap Collet .194 Shank
Click to enlarge 		ER16 Floating Tap Collet .194 Shank
Click to enlarge
ER16 Floating Tap Collet .194 Shank
Click to enlarge 		ER16 Floating Tap Collet .194 Shank
Click to enlarge
ER16 Floating Tap Collet .194 Shank
Click to enlarge
Item No. .194-ER16-FTC
Price: $39.40
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page


  • These collets are great for machines that do not have rigid tapping
  • Collet has an internal spring to compensate for any feed errors while tapping
  • These tapping collets only extend via internal spring. They do not compress
  • Because these collets do not compress always feed min 20% slower than actual calculated feed
  • Set screws in back of collet grip on to the square of the tap shank
  • Collet can extend .250 Inches of travel
  • Set screws need a 2.5mm Allen key (not included)
  • Works in all ER16 Collet Chucks
  • MariTool Part# is .194-ER16-FTC
Product Specifications
Collet Size:  ER16
Tap Shank Diameter Accepted:  .194
