ER32 to ER16 COLLET CHUCK REDUCER 2.0 $82.00
ER32 to ER16 COLLET CHUCK REDUCER 2.0
Click to enlarge

ER32 to ER16 COLLET CHUCK REDUCER 2.0
Click to enlarge 		ER32 to ER16 COLLET CHUCK REDUCER 2.0
Click to enlarge
ER32 to ER16 COLLET CHUCK REDUCER 2.0
Click to enlarge
Item No. ER32-ER16-2.0M
Price: $82.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

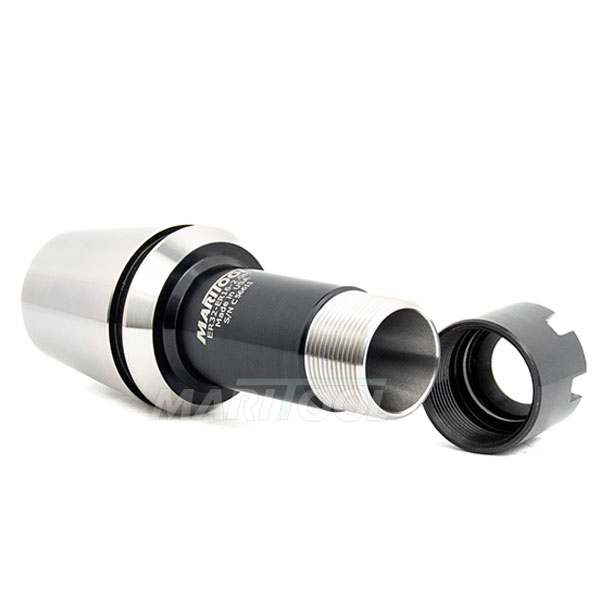

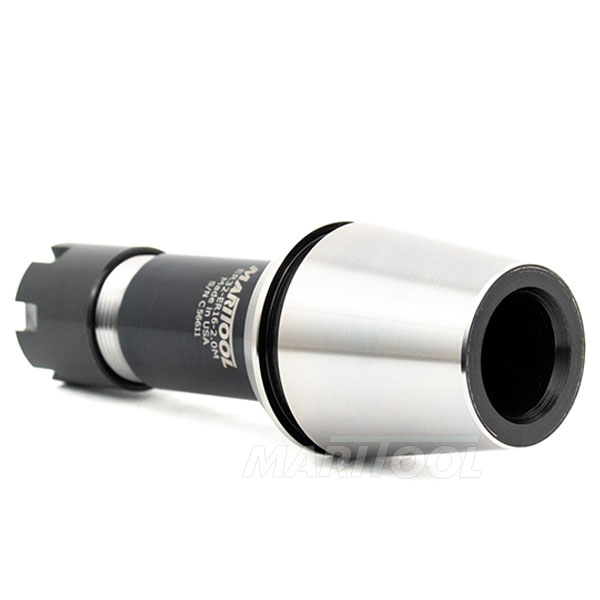

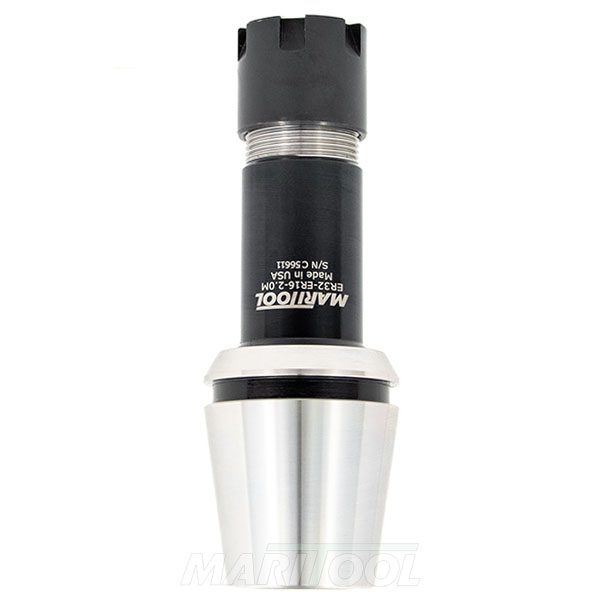

  • ER32 to ER16 Collet Chuck Reducer
  • Works in all ER32 Collet Chucks
  • These Collet Chuck reducers allow you to gain more spindle nose clearance on live tool lathes, as well as adapt large collet systems to smaller collet systems while maintaining low tool runout
  • Most commonly used on live tool lathes. can also be used on mills for extra tool stickout on deep parts
  • Made from hardened alloy steel
  • All critical collet surfaces are precision ground for accurate fit
  • Gage length is 2.0 Inches
  • Concentricity is less than .0002 at collet face
  • Coolant thru capability
  • Collet nut is included
  • Mini Collet Nut is slimmer than standard collet nut
  • ER16 Mini Nut has an id thread of 19mm X 1.0 pitch. Outside diameter is .866 inches (22mm)
  • Must use ER16M collet wrench
  • MariTool Part# is ER32-ER16-2.0M
Product Specifications
Collet Grip Range:  .020-.4375 inches
Collet Nut:  ER16M
Collet Size:  ER16
Concentricity:  < .0002 at Collet Face
Gage Length:  2.0
