ER32 to ER20 COLLET CHUCK REDUCER 1.5

Item No.	ER32-ER20-1.5M
Price:	$82.00
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

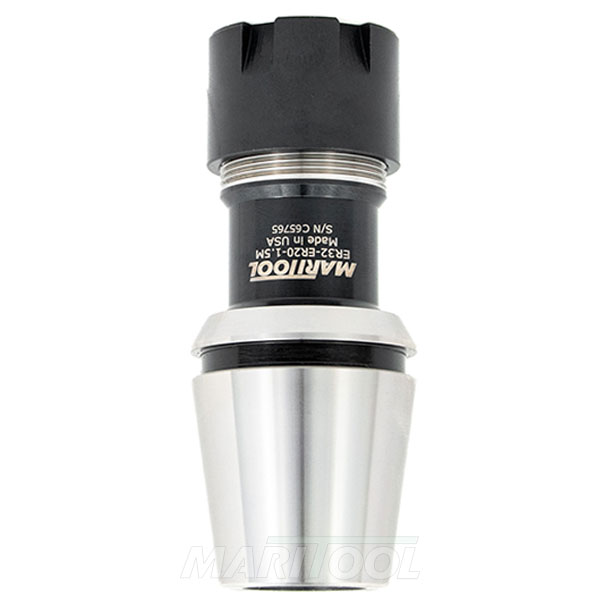

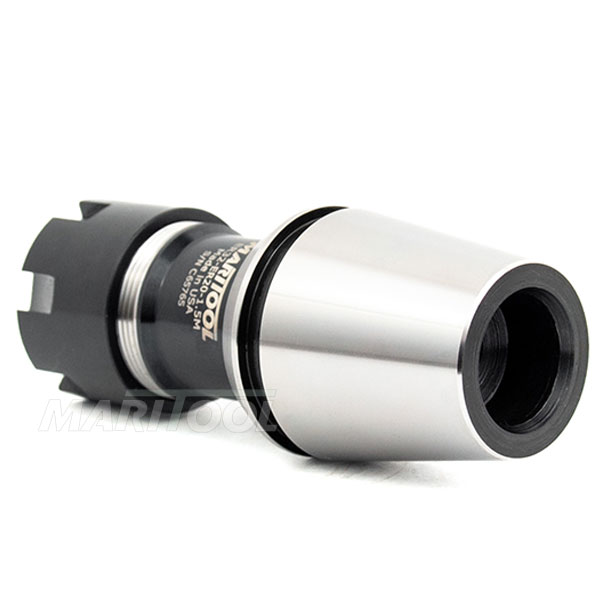

ER32 to ER20 Collet Chuck Reducer
Works in all ER32 Collet Chucks
These Collet Chuck reducers allow you to gain more spindle nose clearance on live tool lathes, as well as adapt large collet systems to smaller collet systems while maintaining low tool runout
Most commonly used on live tool lathes. can also be used on mills for extra tool stickout on deep parts
Made from hardened alloy steel
All critical collet surfaces are precision ground for accurate fit
Gage length is 1.5 Inches
Concentricity is less than .0002 at collet face
Coolant thru capability

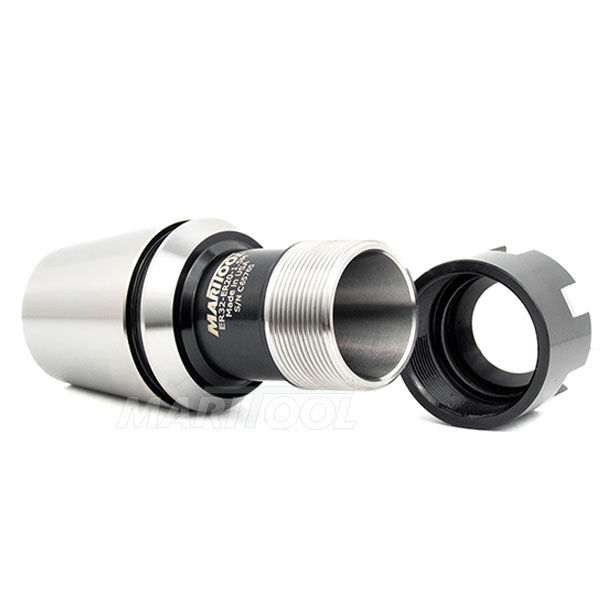

Collet nut is included
Mini Collet Nut is slimmer than standard collet nut
ER20 Mini Nut has an id thread of 24mm X 1.0 pitch. Outside diameter is 1.102 inches (28mm)
Must use ER20M collet wrench
MariTool Part# is ER32-ER20-1.5M
