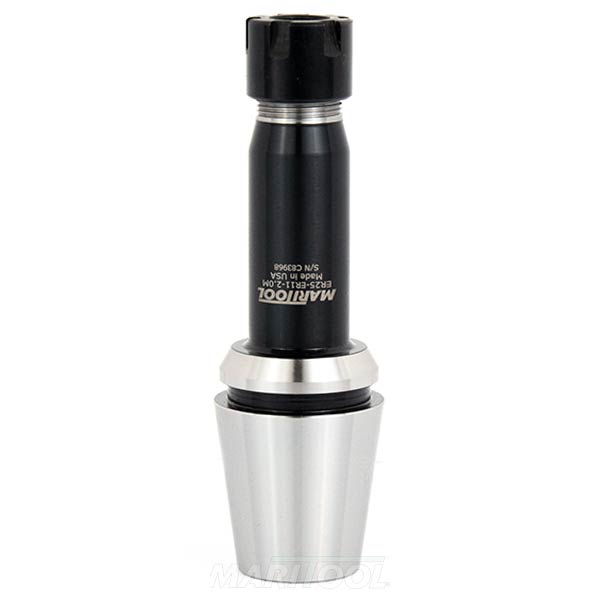

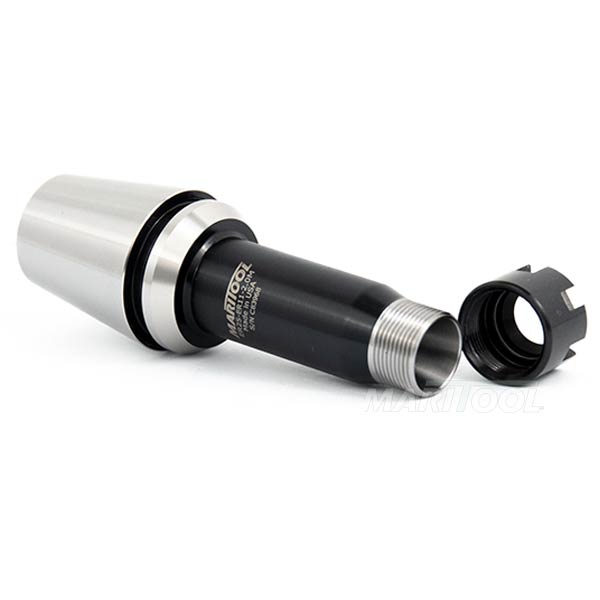

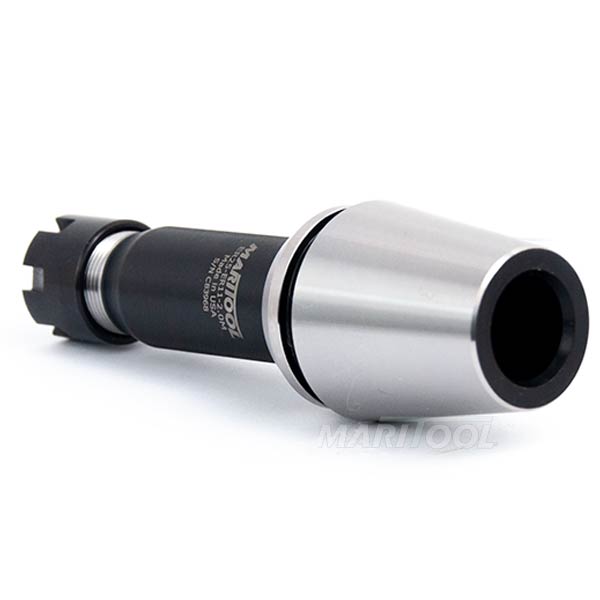

ER25 to ER11 MINI NUT COLLET CHUCK REDUCER 2.0M $77.00
ER25 to ER11 MINI NUT COLLET CHUCK REDUCER 2.0M
Click to enlarge

ER25 to ER11 MINI NUT COLLET CHUCK REDUCER 2.0M
Click to enlarge 		ER25 to ER11 MINI NUT COLLET CHUCK REDUCER 2.0M
Click to enlarge
ER25 to ER11 MINI NUT COLLET CHUCK REDUCER 2.0M
Click to enlarge
Item No. ER25-ER11-2.0M
Price: $77.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for ER25-ER11-2.0M
STP file  DXF file  DWG file  PDF file
Product Info

View complete catalog page

  • ER25 to ER11 Collet Chuck Reducer
  • Works in all ER25 Collet Chucks
  • These Collet Chuck reducers allow you to gain more spindle nose clearance on live tool lathes, as well as adapt large collet systems to smaller collet systems while maintaining low tool runout
  • Most commonly used on live tool lathes. Can also be used on mills for extra tool stickout on deep parts
  • Made from hardened alloy steel
  • All critical collet surfaces are precision ground for accurate fit
  • Gage length is 2.0 Inches
  • Concentricity is less than .0002 at collet face
  • Coolant thru capability
  • Collet nut is included
  • Mini Collet Nut is slimmer than standard collet nut
  • ER11 mini nut has id thread of 13mm X .75 pitch. Outside diameter is .630 inches (16mm)
  • Must use ER11M collet wrench
  • MariTool Part# is ER25-ER11-2.0M
Product Specifications
Collet Grip Range:  .020-.276 inches
Collet Nut:  ER11M
Collet Size:  ER11
Concentricity:  < .0002 at Collet Face
Gage Length:  2.0
