Type 2 Standard Stop Screw $7.00

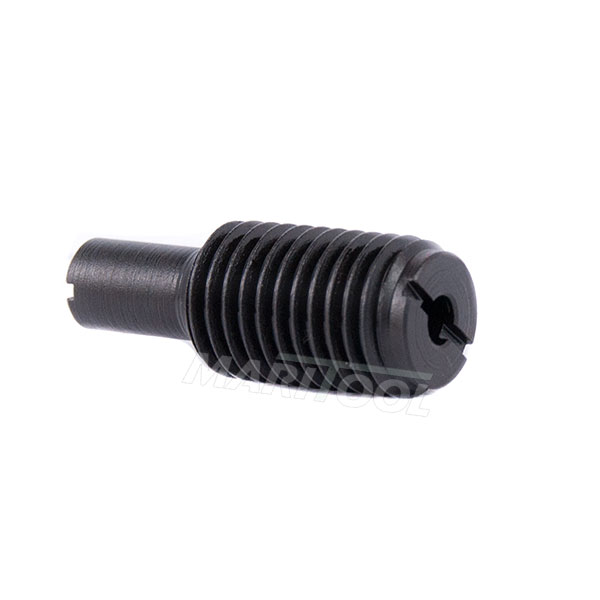

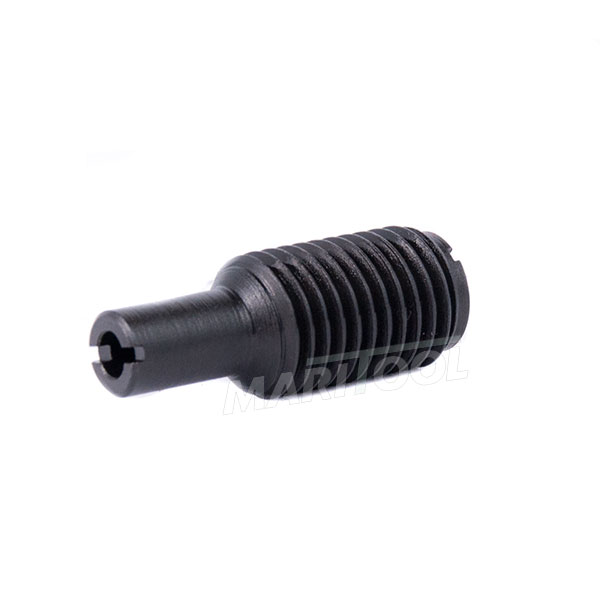

Type 2 Standard Stop Screw
Click to enlarge

Type 2 Standard Stop Screw
Click to enlarge
Item No. T2-Stop-Screw
Price: $7.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

For proper use:

  1. Cutting tool must be fully tightened by the collet nut BEFORE touching stop screw to the tool.
  2. Once the cutting tool is tight, screw the stop screw gently up against the cutting tool.
  • M16 X 2.0 O.D. thread with 3/16 hole thru
  • Total length 1.65 Inches long
  • Both ends are slotted .062 wide X .055 deep
  • O.D. section not threaded is .37 diameter X .57 long
  • Made from alloy steel and hardened to 40 rc
  • Fits all MariTool ER25, ER32 and ER40 collet chucks
  • Also fits MariTool TG100 collet chucks
