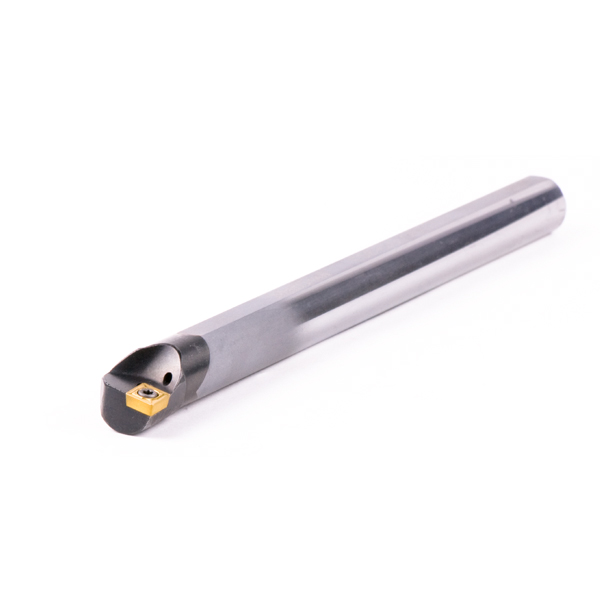

• Shank diameter is .750 , Bar length is 9.0 inches

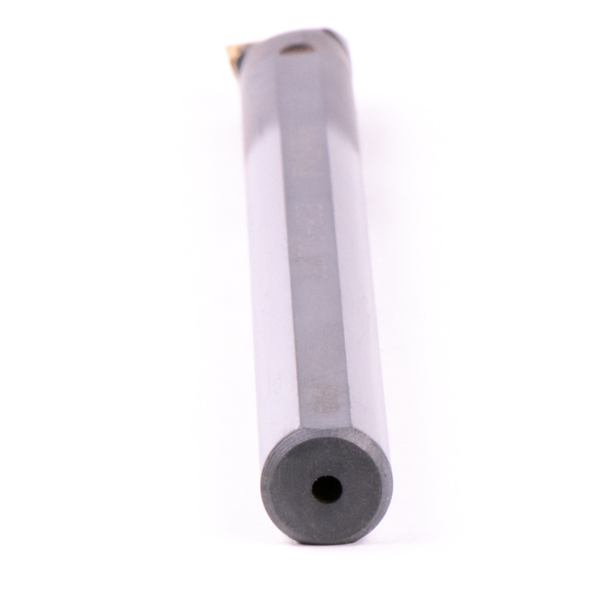

• Shank is hollow for coolant thru delivery to the cutting edge

• Minimum bore diameter of .86 inches
• Bars have a flat on the top and bottom for easy alignment
• Proprietary cobalt percentage in the carbide allows deep boring without chatter
• Extension ratios of over 10 to 1 are possible even in steel
• Boring bar includes 2 insert screws (1 spare)
• Insert is not included
• Torque insert screw to 45 in/lbs
• Uses series CCMT 32.5XXXX and CCMT 09T3XXXX insert
• Also uses CCGT and CCET inserts, insert tolerance is the only difference
• 5 deg lead angle allows you to profile up to a 90 deg shoulder
• MariTool Part# is E12-SCLCR3
