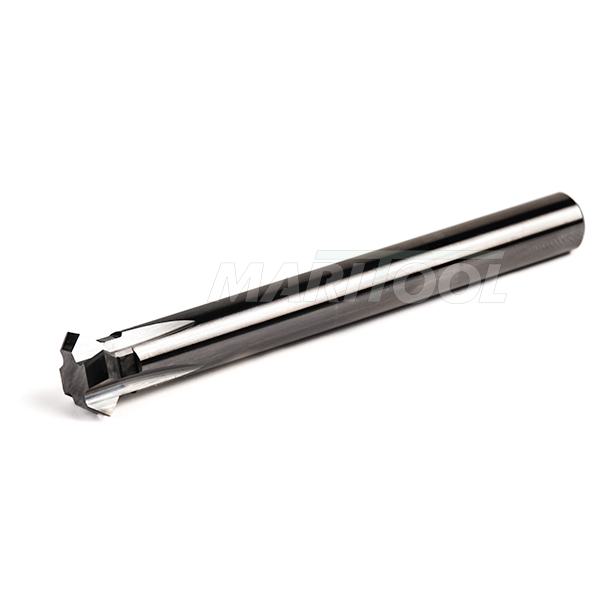

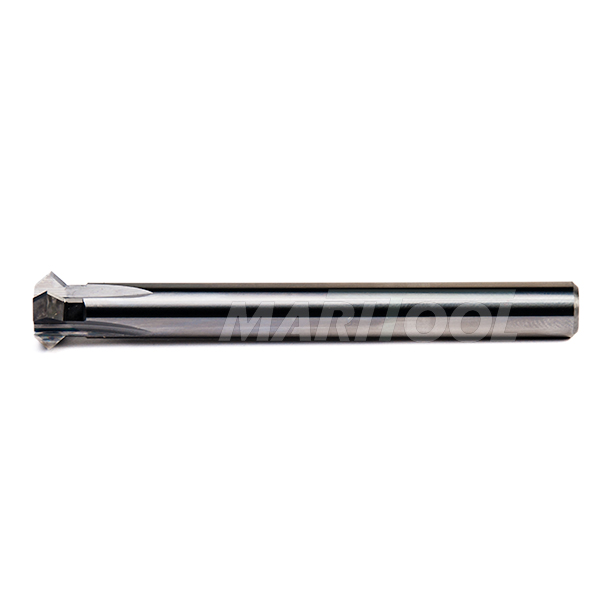

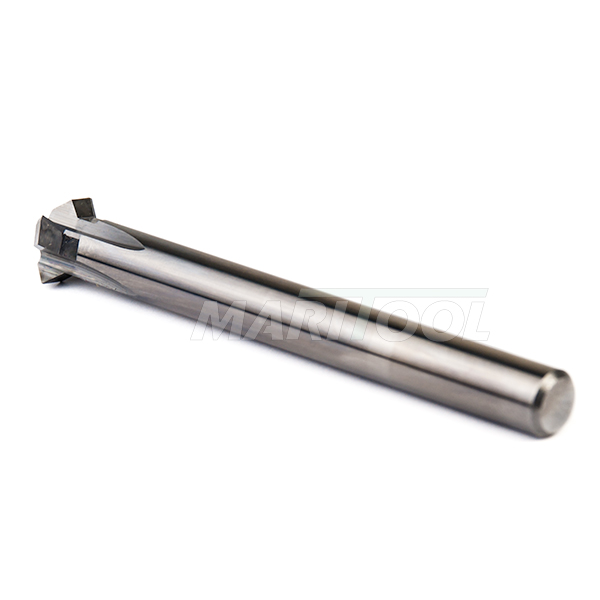

Back Chamfer Mill 90 deg X .250 Shank $62.05
Back Chamfer Mill 90 deg X .250 Shank
Click to enlarge

Back Chamfer Mill 90 deg X .250 Shank
Click to enlarge 		Back Chamfer Mill 90 deg X .250 Shank
Click to enlarge
Item No. 3503-.425-.250-90deg
Price: $62.05
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 3503-.425-.250-90deg
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Made from carbide shank with brazed carbide head.
  • Entire shank is reduced
  • Used for chamfering top and bottom sides of a part without the need for re-clamping
  • Head diameter is measured from the extreme tip
  • Tip comes to a sharp point. No flat.
    Product Specifications
    Centercutting:  No
    Coating:  Uncoated
    Flat on Shank:  No
    Head Diameter:  .425 Inches
    Included Angle:  90 deg
    Material:  Solid Micrograin Carbide
    Number of Flutes:  4
    Shank Size:  .250
    Total Length:  3.00
